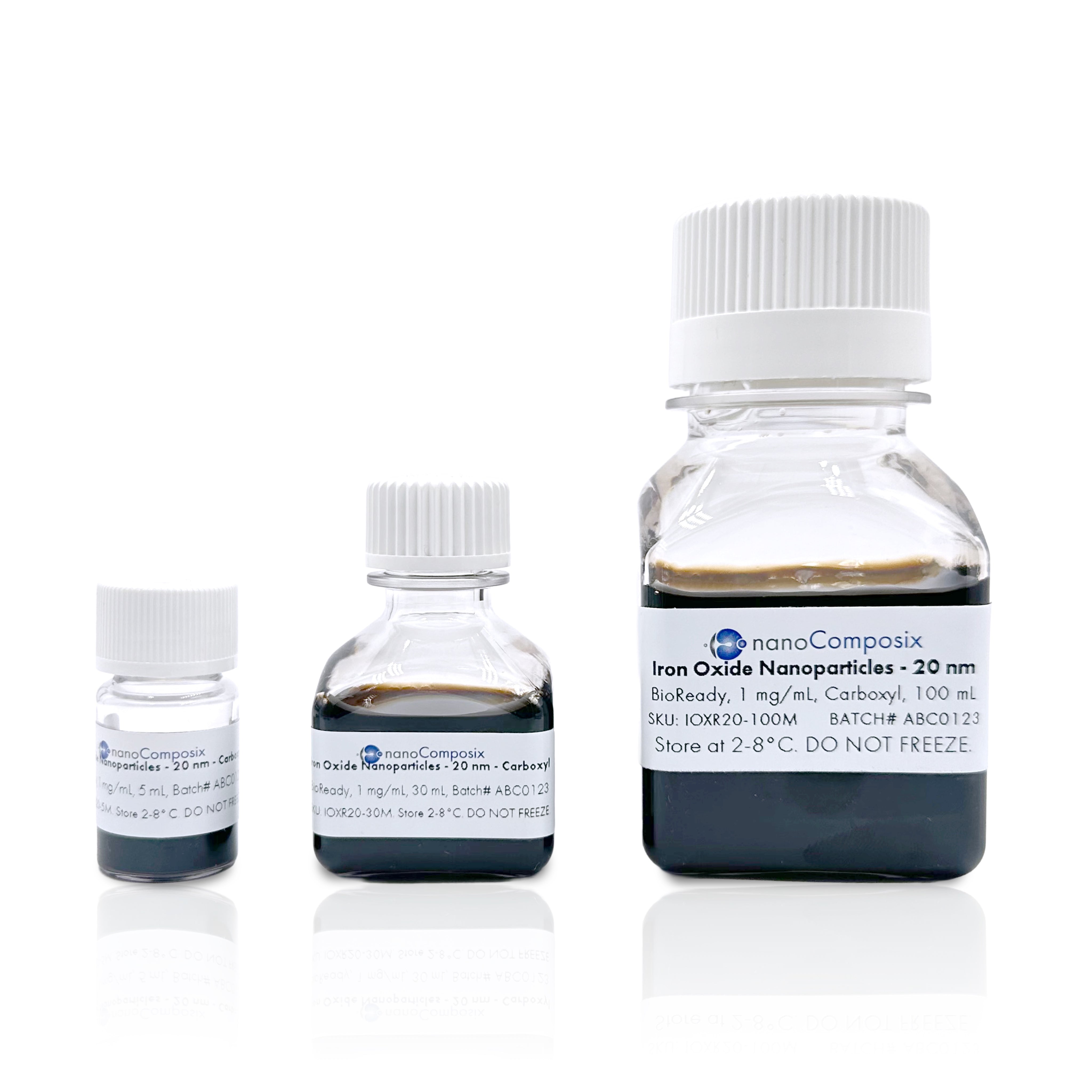

20 nm Iron Oxide Nanoparticles for Conjugation
Customers outside of the US & Canada: please visit your local distributor’s website to purchase this item using its SKU, or contact us here. Thank you!
20 nm magnetic iron oxide nanoparticles are powerful tools for research applications such as biosensing, targeted drug delivery, and magnetic resonance imaging (MRI).
BioReady™ 20 nm Iron Oxide Nanoparticles are available with the following surfaces:
- Carboxyl - for covalent conjugation
- Streptavidin - for high-affinity binding to biotin-labeled molecules
nanoComposix provides high quality, monodisperse, and aggregation-free nanomaterials. All our products are supplied with a batch-specific Certificate of Analysis including characterization data such as TEM, DLS, Zeta, and UV-Vis.
Intended for Research Use Only. Not for use in diagnostic procedures. Contact us for custom formulations, ISO 13485/cGMP compliant materials, or bulk supply requirements.
| Overview | ||
|---|---|---|
| Surface | Carboxyl | Streptavidin |
| Description | Covalently bound. Conjugatable surface. | For streptavidin-biotin binding |
| Solvent | Aqueous 0.02 mM potassium carbonate | 1X PBS, 0.5% BSA, and 0.05% azide |
| Surface chemistry | Carboxylic acid | Streptavidin |
| Specifications | ||
| TEM Diameter | 20 ± 3 nm | 20 ± 3 nm |
| CV | ≤ 15% | ≤ 15% |
| Documents | ||
| Example Certificate of Analysis (CoA) | Download | Download |
| Safety Data Sheet (SDS) | 1 mg/mL (IOXR20) | 1 mg/mL (IOIR20) |
| Storage & Handling | Download | Download |
| Protocols |
Antibody Purification BioReady 20 nm Iron Oxide Covalent Conjugation |
Antibody Purification |
| Expected Ranges | ||
| Hydrodynamic diameter (DLS) | < 65 nm | TEM diameter + 0–30 nm |
| Zeta potential | ≤ –25 mV | ≤ –10 mV |
| pH of solution | 6.0–9.5 | 6.8–8.2 |
