Dynamic Light Scattering (DLS) Nanoparticle Analysis
Customers outside of North America: please visit your local distributor’s website to purchase this item using its SKU, or contact us here. Thank you!
Dynamic Light Scattering (DLS) measures the diffusion of nanoparticles in solution and computes the hydrodynamic diameter using knowledge of the solvent properties and the Stokes-Einstein relationship. DLS rapidly provides information on the size and aggregation state of nanoparticles in solution.

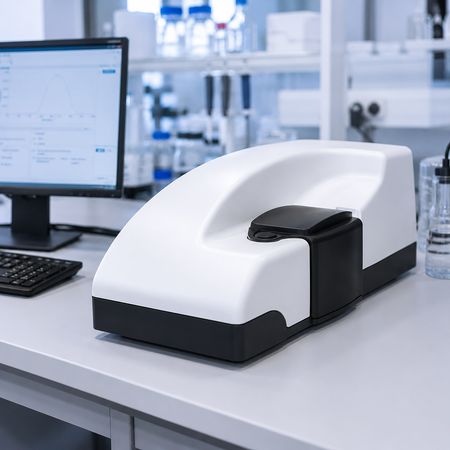

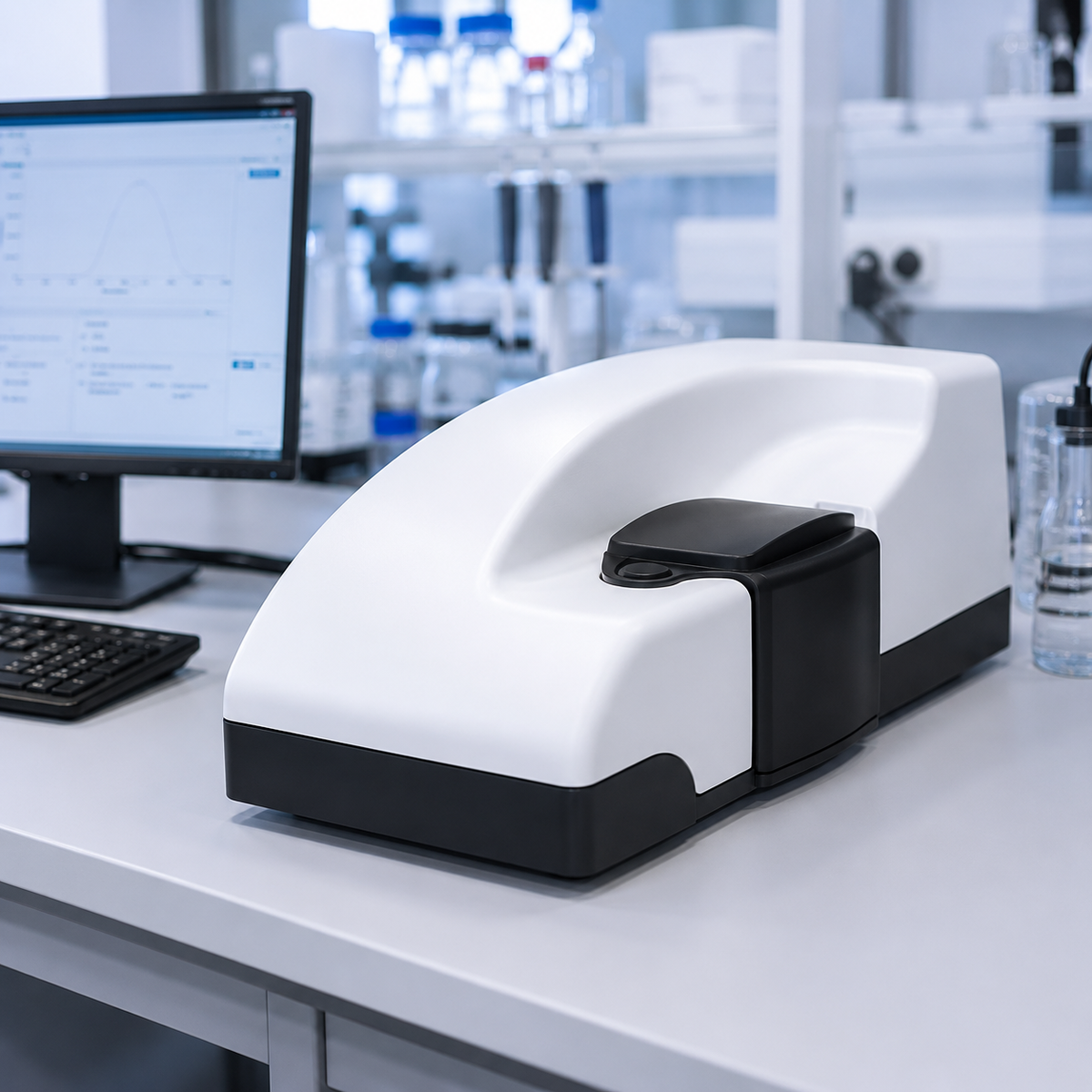

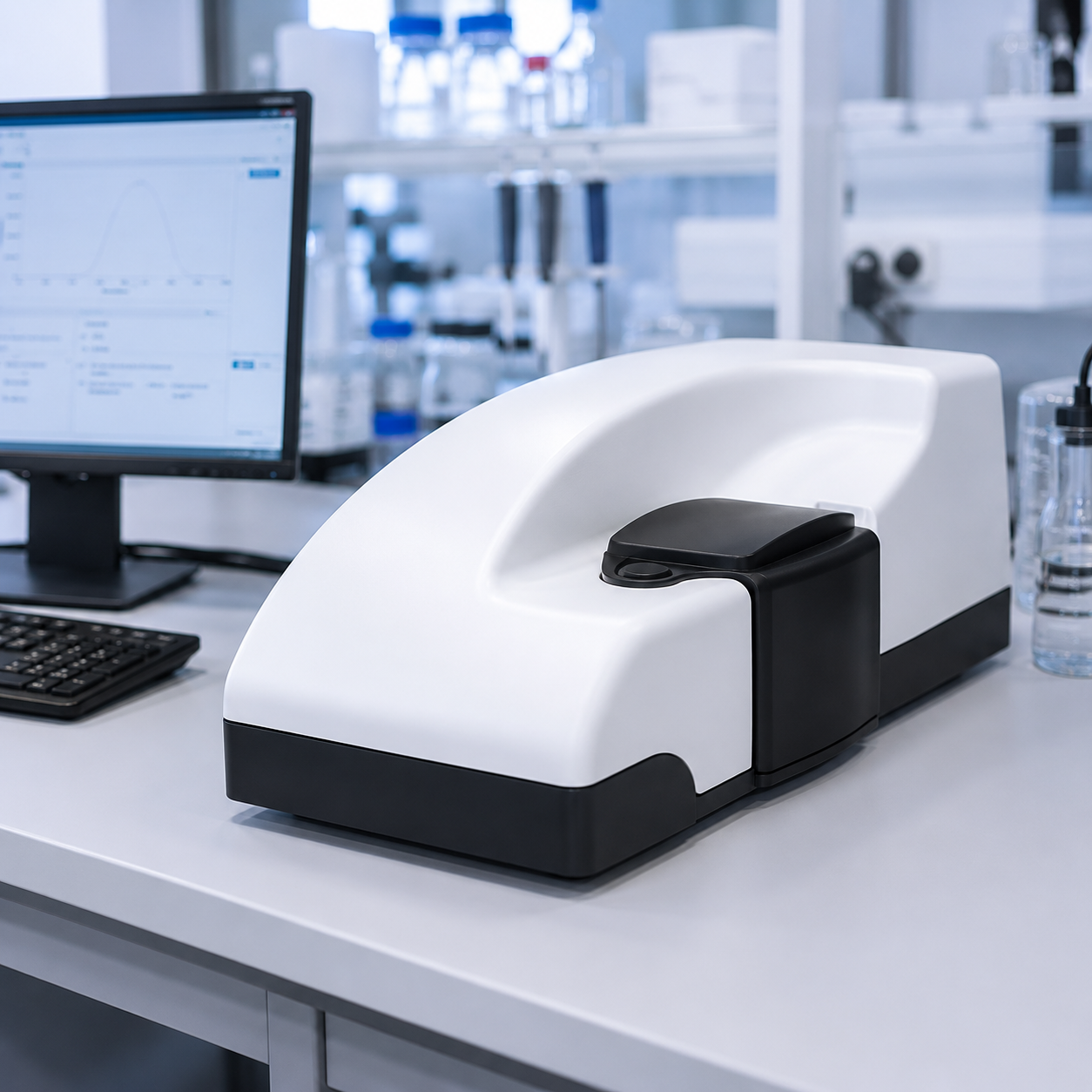

At nanoComposix, DLS measurements are performed on Malvern Zetasizer Nano ZS instruments equipped with a HeNe laser operating at 633 nm and a back-scattering detector at 173 degrees.
Sample Concentration Chart
| Particle size | Min. Concentration (Recommended) | Max. Concentration (Recommended) |
|---|---|---|
| < 10 nm | 0.5 g/l | Only limited by the sample material interaction, aggregation, gelation etc. |
| 10 nm to 100 nm | 0.1 mg/l | 5% mass (assuming a density of 1g/cm3) |
| 100 nm to 1 µm | 0.01 g/l (10–3 % mass) | 1% mass (assuming a density of 1 g/cm3) |
| > 1 um | 0.1 g/l (10–2 % mass) | 1% mass (assuming a density of 1 g/cm3) |
* Table taken from the manuals for Zetasizer Pro, Ultra, and Nano ZS series. Modeled on Polystyrene Latex (1 g/cm3) and will scale proportionally with nanomaterial density.
